Aircraft Payload Extender Products for Cessna Aircraft

APE STOL for 402C

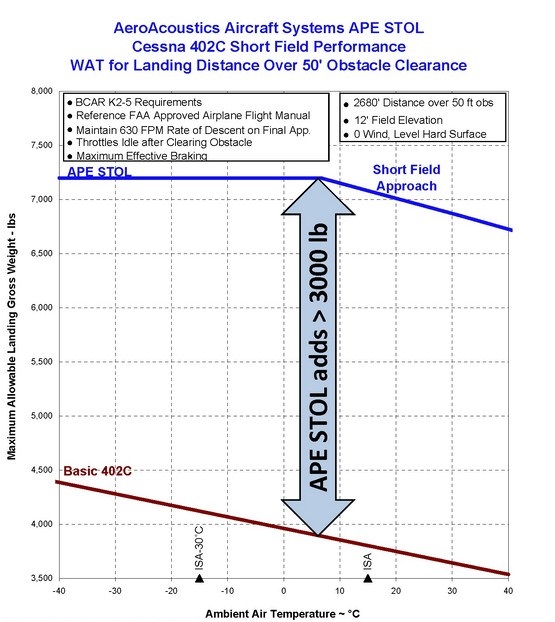

For operations out of short fields the APE STOL greatly enhances the payload capability and operational flexibility of the 402C.  The improved performance results in the significant advantage of the APE STOL for 402C operations as shown in the WAT chart below (Weight-Altitude-Temperature).

Increased Landing Payload.  For the example airfield near sea level, the APE STOL increases payload by over 3000 lb at the hot temperatures typical for many 402C operations at BCAR K2-5 requirements.

Similar results are obtained for operations at higher elevations and from unimproved runways.  Contact our Sales group for an analysis of your 402C operations.

402c Click Image to Enlarge
wat

Do not use for aircraft performance determination.  Use Airplane Flight Manual.
